Atecpool Blow Moulded Electa Filter

Unique one-piece clamp with screw-type lock designed to simplify installation and allow tool-free servicing.
Maximum working pressure 2,5 bar
Max temperature of 50ºC (122ºF)
Universal Standard of union connection provided
ABS lateral provided
Suggested size of media: 0.5 – 0.8 mm
Equipped with a multiport valve with 6-way functions
Easy-to-read pressure gauge for easy inspection
Max filtration velocity: 50 m3/hr/m²
Automatic air release valve available upon request

Technical Specification

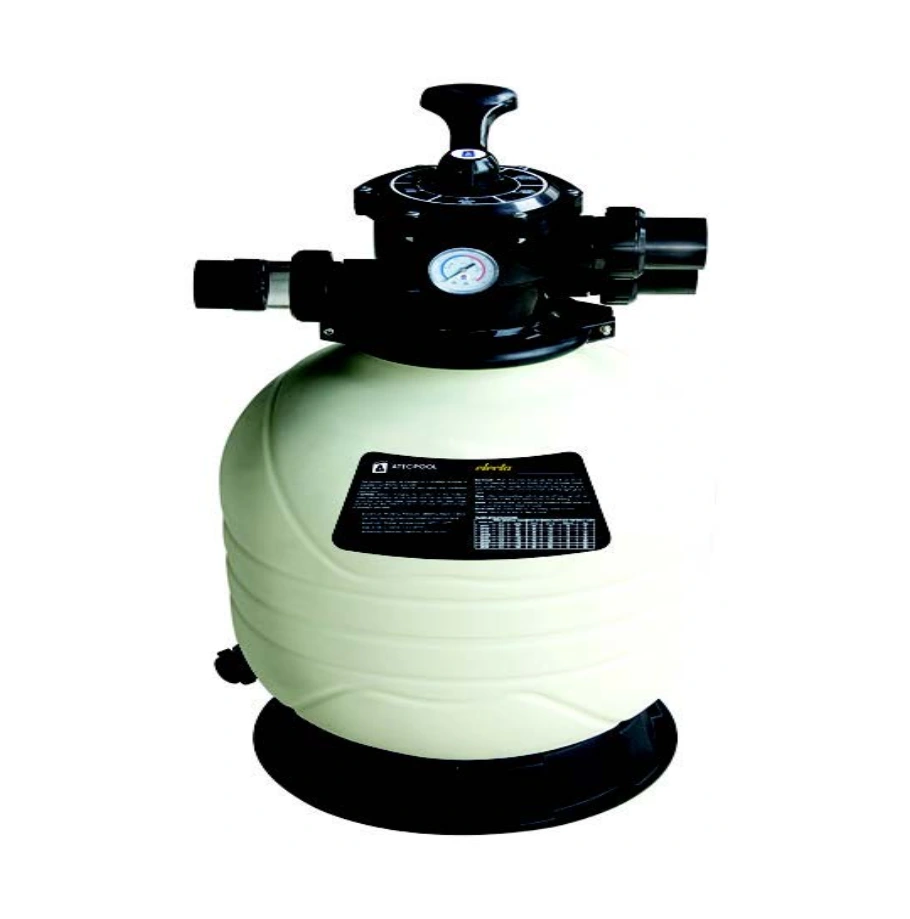

Electa Top Mounted Sand Filters

Code	Diameter Ø (mm)	Maximum Flow (m³/h)	Valve Connection	Sand (kg)
55450	450	7	1½”	40
55510	510	10	1½”	70
55610	610	14	1½”	125
55700	700	18	1½”	185
55800	800	23.5	2″	320
55900	900	30.5	2″	430

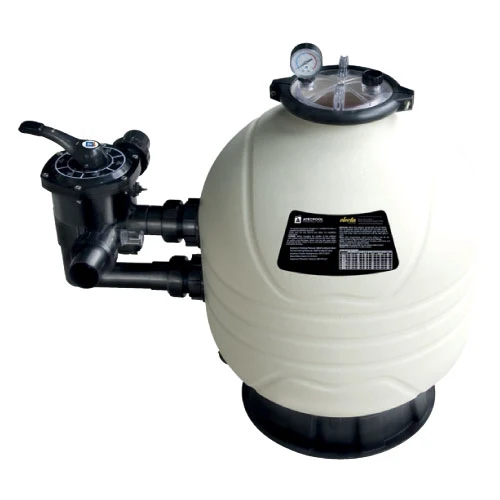

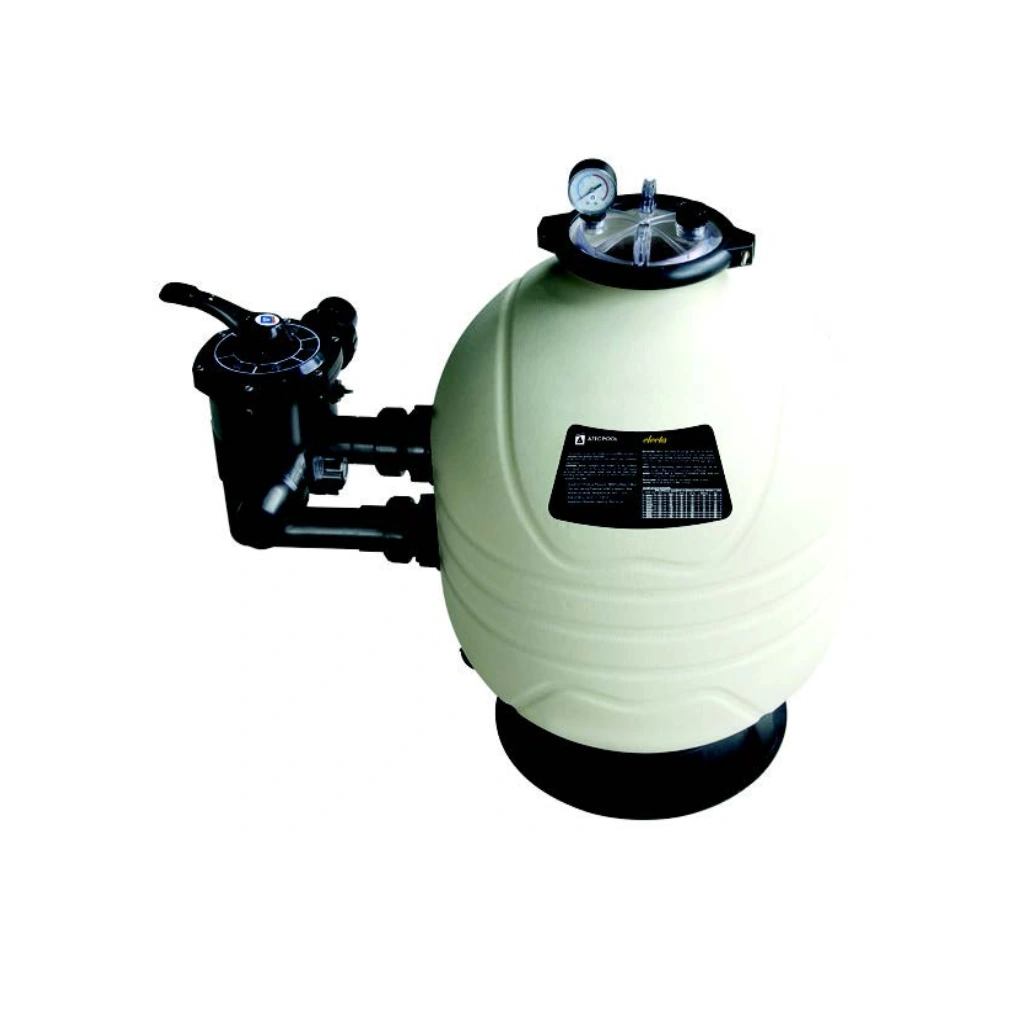

Electa Side Mounted Sand Filters

Code	Diameter Ø (mm)	Maximum Flow (m³/h)	Valve Connection	Sand (kg)
51450	450	7	1½”	40
51510	510	10	1½”	70
51610	610	14	1½”	125
51700	700	18	1½”	185
51800	800	23.5	2″	320
51900	900	30.5	2″	430

Filtration Area and Dimensions

Code	Diameter Ø (mm)	Valve Connection	Filtration Area (m²)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
Top Mounted Filters
55450	450	1½”	0.14	816	695	625	195	450
55510	510	1½”	0.20	889	772	712	225	510
55610	610	1½”	0.28	980	860	800	280	610
55800	800	2″	0.47	1178	1021	955	370	800
55900	900	2″	0.61	1296	1139	1073	440	900
Side Mounted Filters
51450	450	1½”	0.14	354.4	417.5	670	195	450
51510	510	1½”	0.20	396.3	549.3	760	225	510
51610	610	1½”	0.28	429.5	492.5	825	280	610
51700	700	1½”	0.36	459.5	545.5	946	300	700
51800	800	2″	0.47	508	594	968	370	800
51900	900	2″	0.61	564	650	1086	440	900

Maximum filtration velocity: 50 m³/h/m². Maximum working pressure: 2.5 bar. Testing pressure: 4 kg/cm². Maximum operating temperature: 50°C. An automatic air release valve is available upon request.
