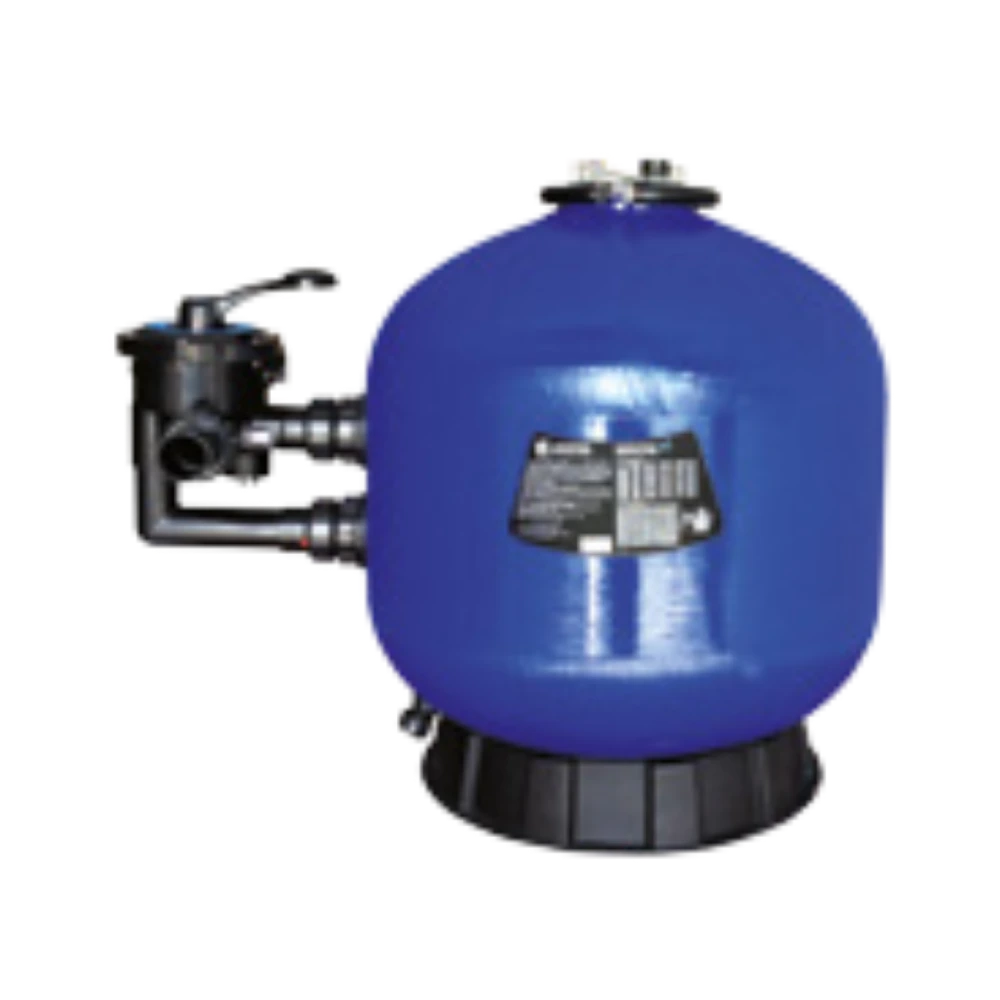

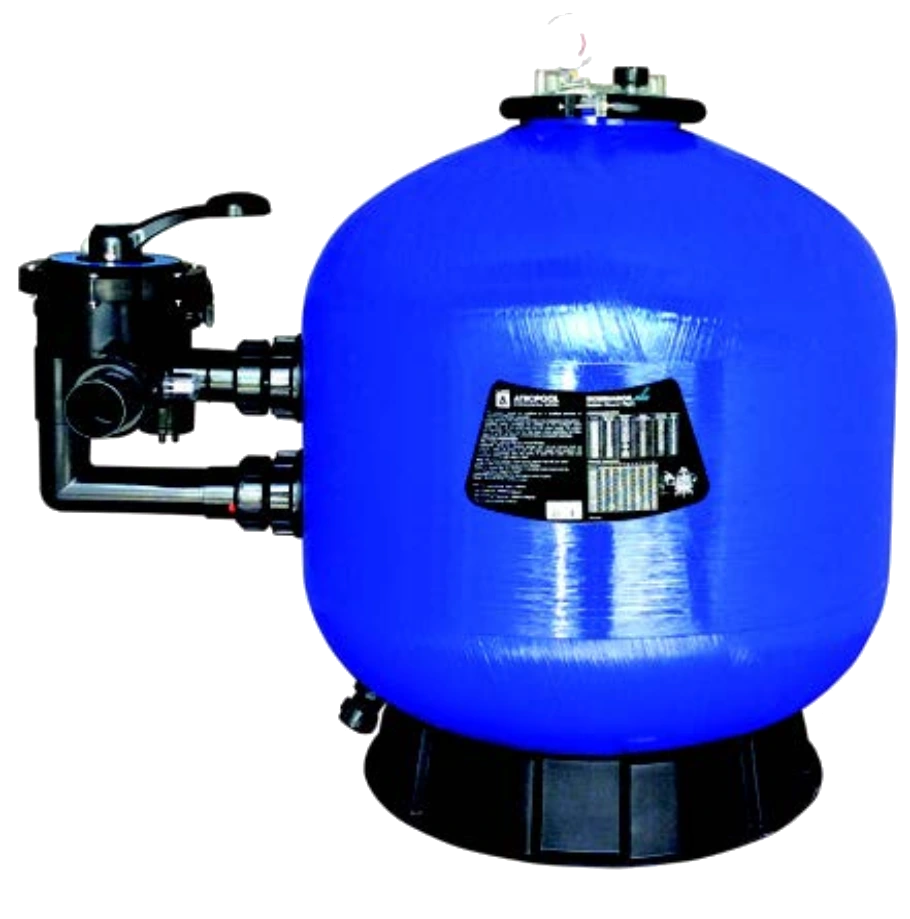

Atecpool Bobinados Plus Side Mounted Filters

Bobbin-wound fiberglass-reinforced tank with
UV-resistant surface finish
The transparent lid is designed for easy inspection of the sand bed
Supplied with a pressure gauge, manual air vent, water purge, and multiport valve
Maximum working pressure: 2,5 kg/cm²
Testing Pressure: 4 kg/cm²
Max temperature of 50°C
Universal standard of union connection provided
Suggested size of media: 0.5-0.8 mm
Equipped with a side multiport valve with 6-way functions
Maximum Filtration Velocity: 50 m3/hr/m².
ABS laterals
Filters with 4Kg/cm² working pressure can be made on request
Automatic air release valve available upon request

Atecpool Bobinados Plus Transparent Lid Model

Code	Diameter Ø (mm)	Maximum Flow (m³/h)	Valve Connection	Sand (kg)
60450	450	8	1½”	45
60500	500	11	1½”	85
60650	650	16	1½”	145
60700	700	20	1½”	210

Injected Lid with Bolts

Code	Diameter Ø (mm)	Maximum Flow (m³/h)	Valve Connection	Sand (kg)
60702	700	20	2″	215
60800	800	26.5	2″	355
60900	900	33	2″	470

Quick Closing Lid Models

Code	Diameter Ø (mm)	Maximum Flow (m³/h)	Valve Connection	Sand (kg)	Gravel (kg)
60902	900	33	2½”	320	150
61000	1000	41	2″	575	200
61002	1000	41	2½”	575	200
61200	1200	58.5	2″	800	300
61202	1200	58.5	2½”	800	300

Filtration Area and Dimensions

Code	Filtration Area (m²)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
60450	0.16	360	420	730	210	455	390	125
60500	0.22	390	450	770	235	535	500	125
60650	0.32	430	490	850	300	635	500	125
60700	0.40	450	510	960	330	710	500	125
60702	0.41	520	606	890	390	723	500	220
60800	0.53	560	646	1050	425	820	780	220
60900	0.66	610	696	1180	480	920	780	220
60902	0.66	673	744	1180	380	920	780	236
61000	0.82	700	770	1220	580	1020	780	220
61002	0.82	773	844	1220	480	1020	780	236
61200	1.17	820	1005	1410	740	1220	1000	220
61202	1.17	836	1079	1410	640	1220	1000	236

Maximum filtration velocity: 50 m³/h/m². Maximum working pressure: 2.5 kg/cm². Testing pressure: 4 kg/cm². Filters with 4 kg/cm² working pressure can be made upon request.
