| Technical Details | Specification |
|---|---|
| Control Cabinet | PLC controller with touchscreen display |
| Fault Alarm | Passive contact signal output for equipment fault / abnormal condition |
| Protection Level | IP54 |
| Optional Communication | Modbus (RS485 or Ethernet) |
| Optional Output | 4–20 mA passive output of UV intensity (%) |
| Optional Input | 4–20 mA passive input for UV lamp power |
| Cabinet Material | SS304 or SS316 |

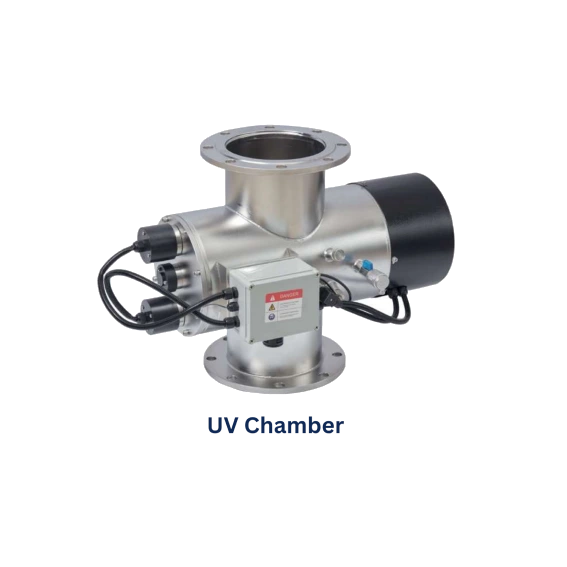

| UV Chamber Material | SS316L (Titanium available upon request) |
| Quartz Cleaning | Automatic wiper, electric driven |
| UV Intensity Sensor | Yes |
| Water Temperature Sensor | Yes |
| Rated Lamp Life | 5,000–7,500 hours |
| Chamber Mounting | Flow horizontal or vertical with lamps horizontal only |
| Operating Pressure | 7 bar maximum, positive pressure only |
| Model | Flow Rate @ 40 mJ/cm² (m³/h) | Flow Rate @ 60 mJ/cm² (m³/h) | Voltage | Lamp Power | Flange | UV Chamber (L×W×H mm) | Control Cabinet (A×B×C mm) |
|---|---|---|---|---|---|---|---|
| ATECUVM-05-1 | 22 | 17 | 220V | 0.5 kW × 1 | DN100 | 560 × 419 × 372 | 693 × 179 × 513 |
| ATECUVM-10-1 | 48 | 36 | 220V | 1.0 kW × 1 | DN100 | 600 × 419 × 372 | 893 × 284.5 × 617 |
| ATECUVM-20-1 | 115 | 80 | 380V | 2.0 kW × 1 | DN150 | 700 × 419 × 375 | 893 × 284.5 × 617 |
| ATECUVM-30-1 | 200 | 145 | 380V | 3.0 kW × 1 | DN150 | 700 × 419 × 377 | 893 × 284.5 × 617 |
| ATECUVM-20-2 | 275 | 200 | 380V | 2.0 kW × 2 | DN200 | 710 × 543 × 431.5 | 893 × 284.5 × 718 |
| ATECUVM-30-2 | 420 | 300 | 380V | 3.0 kW × 2 | DN250 | 710 × 595 × 483 | 893 × 284.5 × 718 |
| ATECUVM-30-3 | 660 | 475 | 380V | 3.0 kW × 3 | DN300 | 710 × 585 × 516 | 1200 × 320 × 851 |
| ATECUVM-30-4 | 920 | 660 | 380V | 3.0 kW × 4 | DN350 | 780 × 585 × 571.5 | 1200 × 320 × 851 |
| ATECUVM-30-5 | 1180 | 850 | 380V | 3.0 kW × 5 | DN350 | 780 × 585 × 571.5 | 1123 × 543 × 600 |
| ATECUVM-30-6 | 1500 | 1050 | 380V | 3.0 kW × 6 | DN400 | 870 × 585 × 626 | 1123 × 543 × 600 |
| ATECUVM-30-8 | 2000 | 1500 | 380V | 3.0 kW × 8 | DN400 | 915 × 1000 × 712.5 | 2620 × 600 × 1200 |
