Plastic Body Pump suitable for draining clean water without abrasive particles.
- 2,850 rpm
- Built-in thermal protector for single-phase motor
- Motor insulation: Class B/F, Protection type IP X8
- Pump body and pre-filter made of polypropylene reinforced with fiberglass
- External Float Switch for automatic pump operation
- Mechanical seal sets ceramic, graphite, and rubber
- Oil seal sets
- Max liquid temperature 40°C
Technical Datasheet
| Code | Body Material | Power | Voltage / Hz | Maximum Submersion Depth | Maximum Flow | Maximum Grain Size | Maximum Liquid Temperature | |
|---|---|---|---|---|---|---|---|---|
| HP | kW | |||||||
| AVP750 | Plastic Body | 1 | 0.75 | 230 V / 50 Hz | 4 m | 13,000 L/h | 35 mm | 40°C |

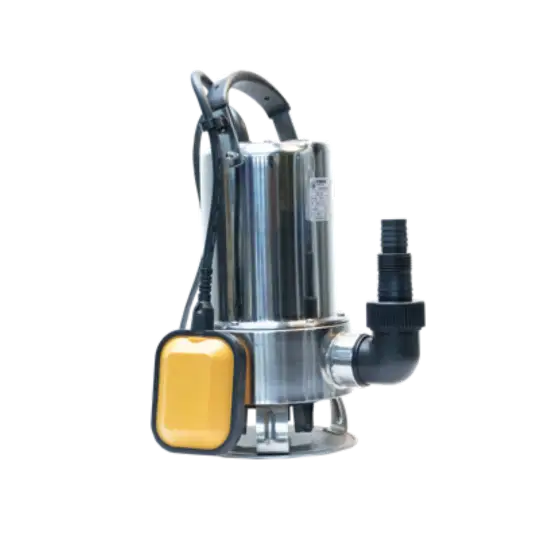

| AVS750 | Stainless Steel Body | 1 | 0.75 | 230 V / 50 Hz | 4 m | 13,000 L/h | 35 mm | 40°C |
