- Class insulation 155(F)
- Thermal overcurrent protection
- Pump casing glass fiber reinforced ABS
- Impeller PPO
- Strainer basket and base in PP + glass fiber
- Motor shaft – 316 stainless steel, seal bellows EPDM
- Self-Priming up to 2m above water level
- Testing pressure 50 PSI (3.5 Bar)
- Basket volume 2 litres
- IPX5 Waterproof Standard
- The ring lock seal design eliminates leaks and maximizes suction efficiency
- Enclosed motor, totally silent, with IP-55 protection
- 2,850 rpm 230V – 50Hz single-phase or 230 / 400V-50Hz three-phase.
- Connections of suction and return at 1.5”(50mm)ID/2″(63mm)OD
- Supplied with both mm and inch fittings
- 60Hz upon request
Technical Datasheet
Model Power Manometric Height w.c.m. RPM Current HP kW 6 8 10 12 14 16 18 20 22 III 230V III 400V Flow m³/h r.p.m. AVM250 2.5 1.8 53 43 32 18 – – – – – 1450 8.5 4.9 AVM300 3 2.2 62 54 43 26 10 – – – – 1450 9.4 5.3 AVM400 4 3 74 66 56 42 29 14 – – – 1450 12.5 6.9 AVM550 5.5 4 123 104 84 57 30 – – – – 1450 15.3 8.8 AVM750 7.5 5.5 143 127 107 85 57 12 – – – 1450 – 12 AVM1000 10 7.5 160 145 126 107 80 48 14 – – 1450 – 15.8 AVM1250 12.5 9.2 – 167 152 136 118 99 80 47 – 2850 – 18.5 AVM1500 15 11 – 188 177 162 146 130 112 92 66 2850 – 20.9 Dimensions
Model Dimensions (mm) Weight
kgA B C D E F G H I J K DNA DNI AVM250 423 405 527 310 267 500 335 300 450 596 368 110 110 42 AVM300 423 405 527 310 267 500 335 300 450 596 368 110 110 42.5 AVM400 423 405 527 310 267 500 335 300 450 596 368 110 110 44.5 AVM550 423 405 527 335 267 500 335 300 450 596 368 110 110 53.4 AVM750 423 405 527 385 267 500 335 300 450 596 368 110 110 66 AVM1000 423 405 527 385 267 500 335 300 450 596 368 110 110 76 AVM1250 423 405 527 385 267 500 335 300 450 596 368 110 110 84.5 AVM1500 423 405 527 385 267 500 335 300 450 596 368 110 110 85.5

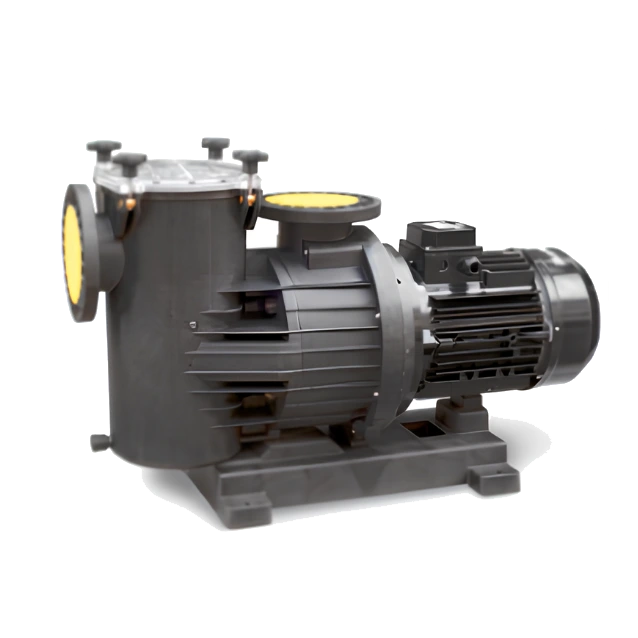

Atecpool Maxim Pump
Self-priming electric pump for swimming pools
The Atecpool Maxim Self Priming Pump is designed with durable materials and reliable components to provide efficient pumping performance. Featuring a polypropylene and fiberglass construction, a bronze impeller, and a large pre-filter basket, the pump ensures dependable operation.
The pump includes a mechanical seal, screws, and shaft made of stainless steel AISI-316, along with a Noryl support base for enhanced durability. It is equipped with an IE3 asynchronous motor operating at 1450 rpm, with 1750 rpm available at 60Hz.
