- Asynchronous, Two-pole motor
- Motor: 50Hz / 2,850 rpm
- IPX5 Waterproof standard
- Built-in thermal protection
- Overload protection
- External heat sink
- Special design union compatible with both Imperial and metric measurement standards
- S.S.316 Shaft
- S.S.316 Mechanical seal
- Motor insulation: Class B
- Low noise level
- Energy savings and easy maintenance
- Available in 50Hz or 60Hz with 230V/110V
- 1.5″/50mm suction and discharge port with transparent lid
Technical Data 50Hz(IE3)

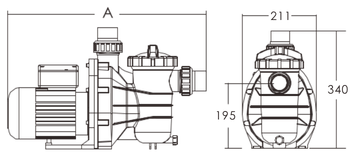

Model Power Manometric Height w.c.m. Weight A Width Noise HP kW A 2 4 6 8 10 Flow m³/h kg mm dB AFL020 0.2 0.28 1.5 8.4 4 – – – 6.2 507 55 AFL030 0.33 0.43 2 10.4 7 – – – 6.5 507 55 AFL050 0.5 0.55 2.5 12.4 10 4 – – 8.0 552 60 AFL075 0.75 0.75 3.5 14.4 12.2 9.4 5 – 9.0 552 60 AFL100 1.0 0.90 4.7 15.2 13.8 11.4 8.4 4 9.1 552 65 AFL120 1.2 0.97 5.8 18 16 14 12 8 11.0 552 65

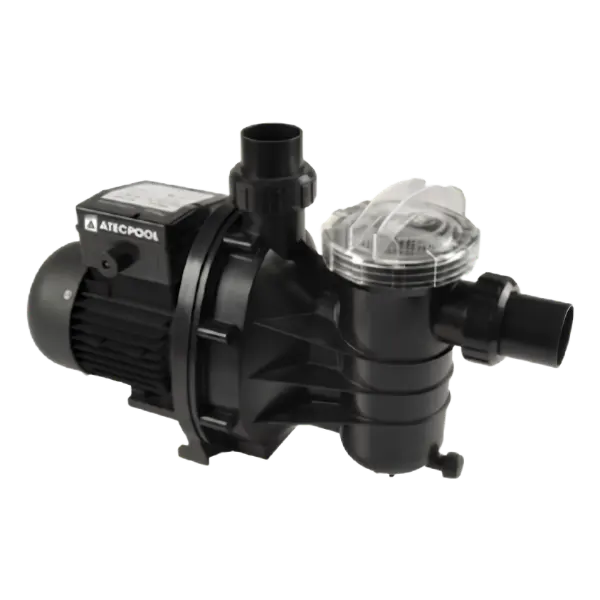

Atecpool Flowmax Pump
The Atecpool Flowmax Self-Priming Pump is engineered to deliver reliable, high-performance water circulation for residential and commercial swimming pools. Designed with a durable asynchronous two-pole motor, corrosion-resistant stainless steel components, and advanced thermal protection, it ensures efficient, quiet, and long-lasting operation. Its self-priming capability, energy-efficient design, and easy maintenance make it an ideal solution for dependable pool water circulation in a wide range of applications.
