- Class insulation 155(F)
- Thermal overcurrent protection
- Pump casing glass fiber reinforced ABS
- Impeller PPO
- Strainer basket and base in PP + glass fiber
- Motor shaft – 316 stainless steel, seal bellows EPDM
- Self-Priming up to 2m above water level
- Testing pressure 50 PSI (3.5 Bar)
- Basket volume 2 litres
- IPX5 Waterproof Standard
- The ring lock seal design eliminates leaks and maximizes suction efficiency
- Enclosed motor, totally silent, with IP-55 protection
- 2,850 rpm 230V – 50Hz single-phase or 230 / 400V-50Hz three-phase.
- Connections of suction and return at 1.5”(50mm)ID/2″(63mm)OD
- Supplied with both mm and inch fittings
- 60Hz upon request
Technical Datasheet

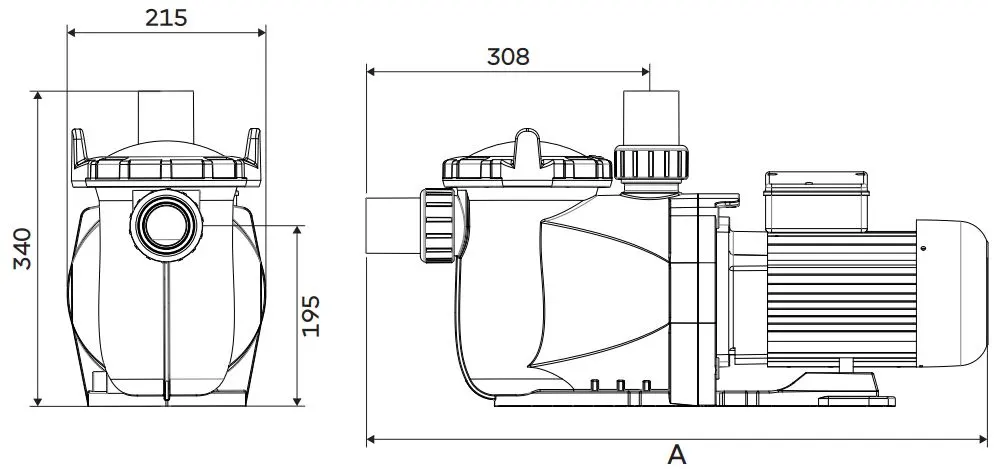

Model Power Noise Manometric Height w.c.m. Weight Width A HP kW 6 8 10 12 14 16 dB Flow m³/h kg mm AS075MPRO 0.75 0.55 65 15 12.5 9.5 5 – – 13.6 652 AS100MPRO
AS100TPRO1.0 0.75 65 19.5 17.5 15.2 12.5 9 3 13.8 652 AS150MPRO
AS150TPRO1.5 1.10 67 24 22 20 17.5 14 10 14.0 652 AS200MPRO
AS200TPRO2.0 1.50 67 27.5 25.5 23 20.5 18 14.5 14.2 652 AS300MPRO
AS300TPRO3.0 2.20 68 30 28.2 26 23.8 21 18 14.5 682
Atecpool EuroMax Pro Pump
Self-priming electric pump for swimming pools, with built-in pre-filter.
The Atecpool Euromax Pro Pump is a high-performance self-priming swimming pool pump designed to deliver efficient and reliable water circulation. Featuring a robust construction with glass fiber reinforced components, a stainless steel shaft, and advanced motor protection, it ensures durability, quiet operation, and long service life. With its integrated pre-filter, excellent suction performance, and compatibility with both metric and imperial connections, the Euromax Pro Pump is an ideal choice for residential and commercial pool applications requiring dependable circulation and easy maintenance.
