| Code | Model | Description | Frequency |
|---|---|---|---|
| 210 402 | ATEC – APS 2L / 10B | 2 L/h / 10 Bar Level Controlled and 1/10 Adjustable Analogue Dosing Pump | 120 imp/min |
| 210 405 | ATEC – APS 5L / 7B | 5 L/h / 7 Bar Level Controlled and 1/10 Adjustable Analogue Dosing Pump | 120 imp/min |
| 210 410 | ATEC – APS 10L / 5B | 10 L/h / 5 Bar Level Controlled and 1/10 Adjustable Analogue Dosing Pump | 120 imp/min |
| 210 412 | ATEC – APS 2L / 20B | 2 L/h / 20 Bar Level Controlled and 1/10 Adjustable Analogue Dosing Pump | 120 imp/min |

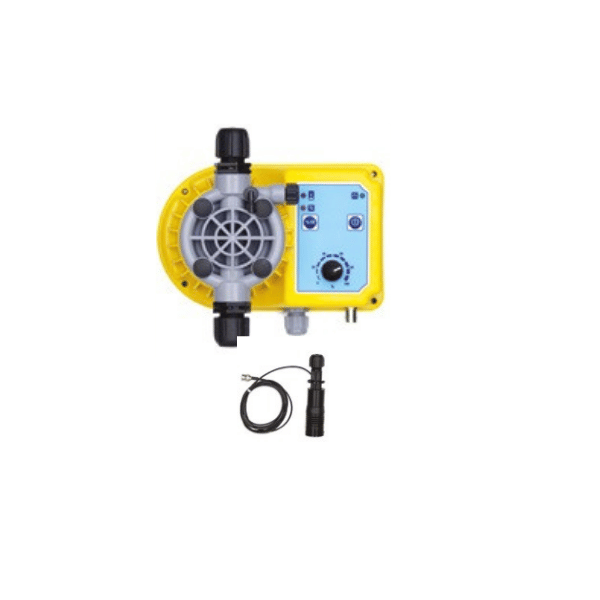

Analogue Liquid Level Controlled and 1/10 Adjusted Dosing Pump
Manual Dosing Pumps – SOLENOID-DRIVEN
- Adjustable stroke rate via the potentiometer on the device.
- Liquid level control and 1/10 adjustable button.
- High resistance to corrosive chemicals with PVDF Pump IP65 body.
- Electronic circuit controlled electromagnet and long-lasting Teflon (PTFE) diaphragm.
- Less maintenance with ceramic ball design.
- Suction and injection parts included.
