LED Waterfall

LED Waterfall

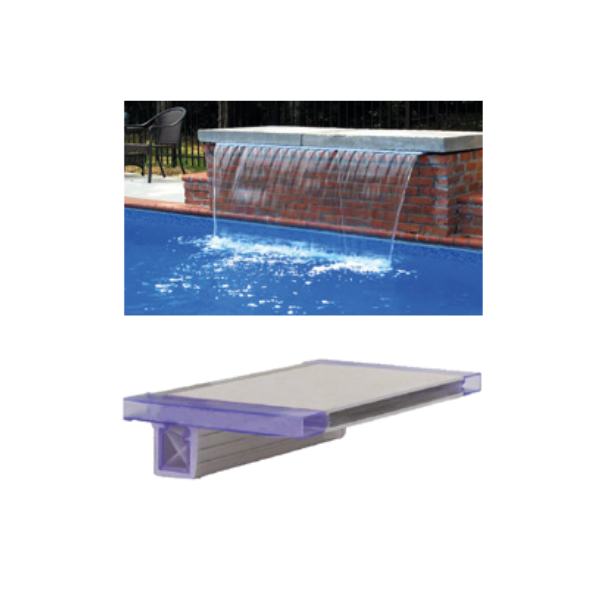

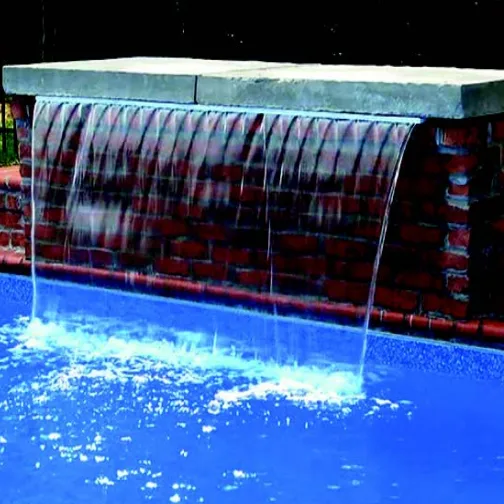

Atecpool waterfall collection is an elegant addition to your new or remodeled pool or spa. The LED Strip is built into the unit (instead of using external fiber optics), placing the light as close to the water as possible..

Waterfall features

Variety of LED light colors
Length available from 12” to 96”
Automatic timer shut-off
Adjustable brightness
Rear port inlet
Heavy-duty PVC construction

Technical Guide

12 volt DC
1.5” spigot plumbing
1.25 GPM per inch recommended

Technical Specifications

Model	Description	Width W	Length L	LED Strip Length (mm)	Inlet Port	Recommended Water Flow (m³/h)
4600-1206	12″ LED Waterfall with 6″ LIP	8.44″	15.98″	600	Rear	2.7
4600-1806	18″ LED Waterfall with 6″ LIP	8.44″	21.89″	750	Rear	4.0
4600-2406	24″ LED Waterfall with 6″ LIP	8.44″	27.8″	900	Rear	5.5
4600-3606	36″ LED Waterfall with 6″ LIP	8.44″	39.61″	1200	Rear	8.2
4600-4806	48″ LED Waterfall with 6″ LIP	8.44″	51.42″	1500	Rear	10.9
4600-6006	60″ LED Waterfall with 6″ LIP	8.44″	63.23″	1800	Rear	13.6
4600-7206	72″ LED Waterfall with 6″ LIP	8.44″	75.04″	2100	Rear	16.3
4600-8406	84″ LED Waterfall with 6″ LIP	8.44″	86.85″	2400	Rear	19
4600-9606	96″ LED Waterfall with 6″ LIP	8.44″	98.66″	2700	Rear	21.8
