| Specification | ATEC250CM | ATEC300CM | ATEC500CM | ATEC750CM | ATEC1000CM |
|---|---|---|---|---|---|
| Power Requirements / Watts | 230 V AC / 1,120 W | 230 V AC / 1,340 W | 230 V AC / 2,240 W | 230 V AC / 3,360 W | 230 V AC / 4,450 W |
| Voltage Output | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Chlorine Production / Hour (5 g/L Salt) |
250 g/h | 300 g/h | 500 g/h | 750 g/h | 1000 g/h |
| Cell Expected Life Span | 14,000 hours | ||||
| Minimum Flow | 15 m³/h | 15 m³/h | 30 m³/h | 45 m³/h | 60 m³/h |
| Connections | 63 mm | 63 mm | 75 mm | 90 mm | 110 mm |
| Weight | 130 kg | 140 kg | 150 kg | 180 kg | 200 kg |

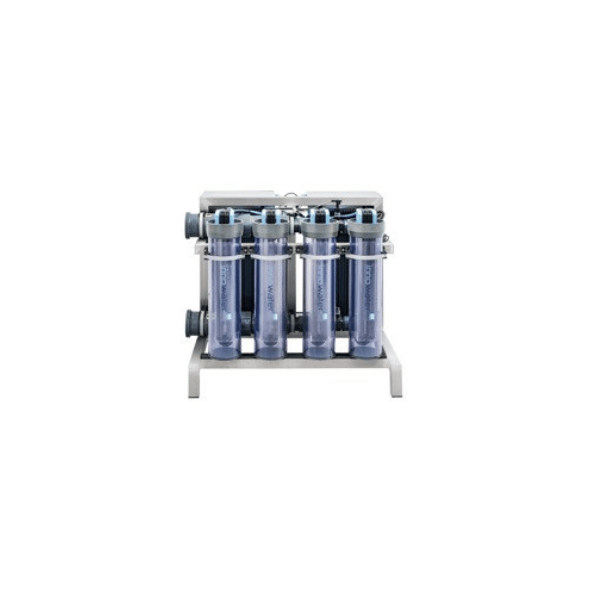

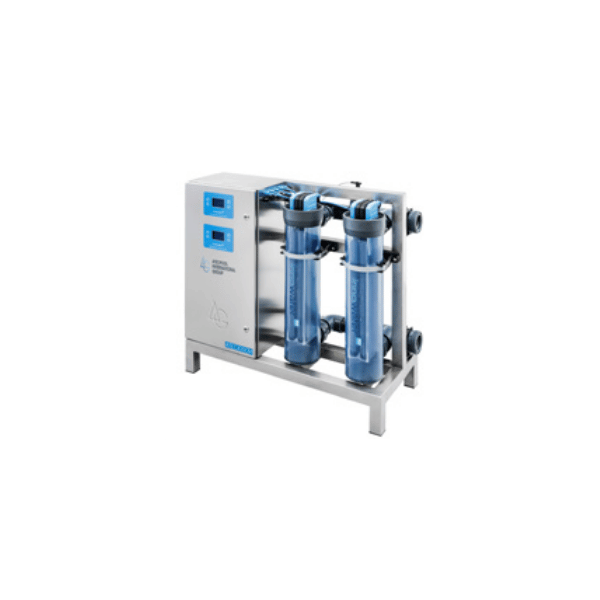

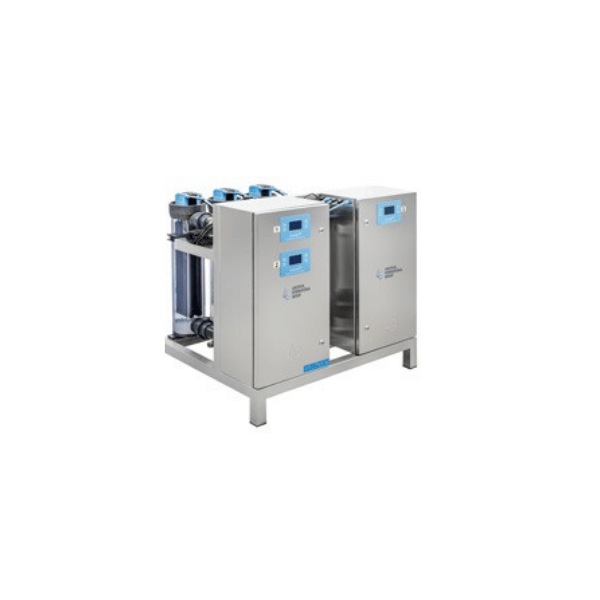

Commercial Salt Water Chlorinator
Salt Water Electrolysis
Specifications
- High-performance electrochlorinators for intensive commercial applications and high capacity (public installations)
- Waterproof high-power performance switch modes, without forced ventilation
- Electronics in a 316 stainless steel insulated cabinet without external air ventilation, highly resistant to corrosive atmospheres. IP-65
- Electronic current control
- Temperature and water flow control
- Prepared for industrial control by CAN or Profibus
- Extended salinity range: 500 – 35.000 ppm (seawater)
- Compact mounting design with integrated cell and housing
- Methacrylate electrode cassette to ease inspection
- Low-maintenance reverse-polarity cell is easily accessible
Electrodes of a low current density and long life: 14.000 hours - Flow switch
- Expected electrode life: 14.000 hours
