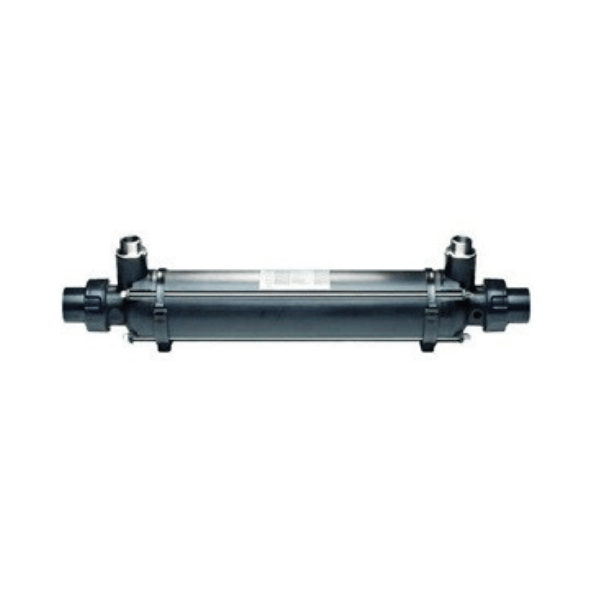

CLT85 – Heat Exchanger

Water Heat Exchanger 25/46kW at 90°C in S.S/Titanium
Water/water heat exchanger with corrugated coiled tubing in cross-flow, stainless steel or titanium corrugated coiled tubing, offers high energy efficiency. The plastic shell can endure high pressure and is corrosion-resistant. The individual components are sealed with silicone gaskets and ensure the longevity of the whole heat exchanger. Like all coiled tubing heat exchangers, they must be integrated into the bathing water circuit either directly or through the bypass system. The shell is made of PA66/PP-30% FG.

Model	CLT85			CLT105
Pool Water	20°C	24°C	28°C	20°C	24°C	28°C
Heat Capacity	91 kW	85.8 kW	80.6 kW	126 kW	118.8 kW	111.6 kW
Primary In/Out	90/49.6°C	90/52°C	90/54.2°C	90/34°C	90/37.3°C	90/40.5°C
Secondary In/Out	20/26.5°C	24/30.2°C	28/33.8°C	20/27.2°C	24/30.8°C	28/34.4°C
Heat Capacity	78 kW	72.8 kW	67.6 kW	108 kW	100.8 kW	93.6 kW
Primary In/Out	80/45.5°C	80/47.8°C	80/50.1°C	80/32.3°C	80/35.5°C	80/38.7°C
Secondary In/Out	20/25.6°C	24/29.2°C	28/32.9°C	20/26.2°C	24/29.8°C	28/33.4°C
Heat Capacity	65 kW	59.8 kW	54.6 kW	90 kW	82.8 kW	75.6 kW
Primary In/Out	70/41.4°C	70/43.7°C	70/46°C	70/30.4°C	70/33.6°C	70/36.7°C
Secondary In/Out	20/24.7°C	24/28.3°C	28/31.9°C	20/25.2°C	24/28.8°C	28/32.4°C
Heat Capacity	52 kW	46.8 kW	41.6 kW	72 kW	64.8 kW	57.6 kW
Primary In/Out	60/37.2°C	60/39.5°C	60/41.8°C	60/28.4°C	60/31.6°C	60/34.8°C
Secondary In/Out	20/23.7°C	24/27.4°C	28/31°C	20/24.1°C	24/27.7°C	28/31.3°C
Heat Capacity	39 kW	33.8 kW	28.6 kW	54 kW	46.8 kW	39.6 kW
Primary In/Out	50/33°C	50/35.2°C	50/37.5°C	50/26.4°C	50/29.6°C	50/32.7°C
Secondary In/Out	20/22.8°C	24/26.4°C	28/30.1°C	20/23.1°C	24/26.7°C	28/30.3°C
