- Quieter operation – less than 48 decibels
- Permanent magnet brushless synchronous motor
- User-friendly programming on a 2.4-inch LCD
- Dry-run protection, overheating, voltage fluctuation, freezing, and over-current protection
- Power supply – 208-240V/50/60Hz
- EagleBurgmann BT mechanical seals
- IE4 motor, Motor Insulation – Class F
- Built-in diagnostic for longer service life
- Designed for pool automation with maximum energy efficiency
- Safety release system enabled through over-current protection
- Pump casing glass fiber reinforced ABS, Impeller – PPO
- Strainer basket and base in PP and glass fiber
- Motor shaft – 316 stainless steel
Technical Data 50–60Hz (IE4)
| Model | Speed | RPM | Power Consumption |
|---|---|---|---|
| VSP100 | 50% | 1725 | 150–300 W |
| 80% | 2760 | 500–900 W | |
| 100% | 3450 | 800–1700 W | |
| VSP300 | 30% | 1035 | 20–110 W |
| 50% | 1725 | 180–400 W | |
| 80% | 2760 | 600–1400 W | |
| 100% | 3450 | 1100–2600 W |

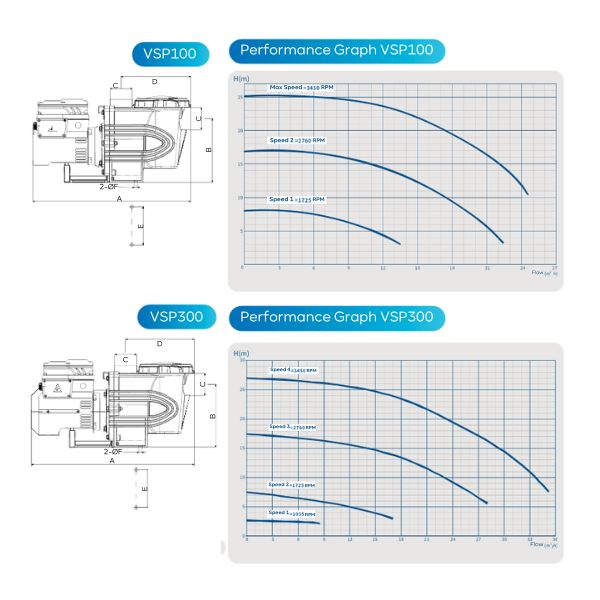

Dimensions
| Model | HP | kW | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|
| VSP100 | 1.5 | 1.1 | 570 | 230 | G2″ | 250 | 138.5 | 12 |
| VSP300 | 3.0 | 2.2 | 600 | 230 | G2″ | 250 | 154 | 12 |
