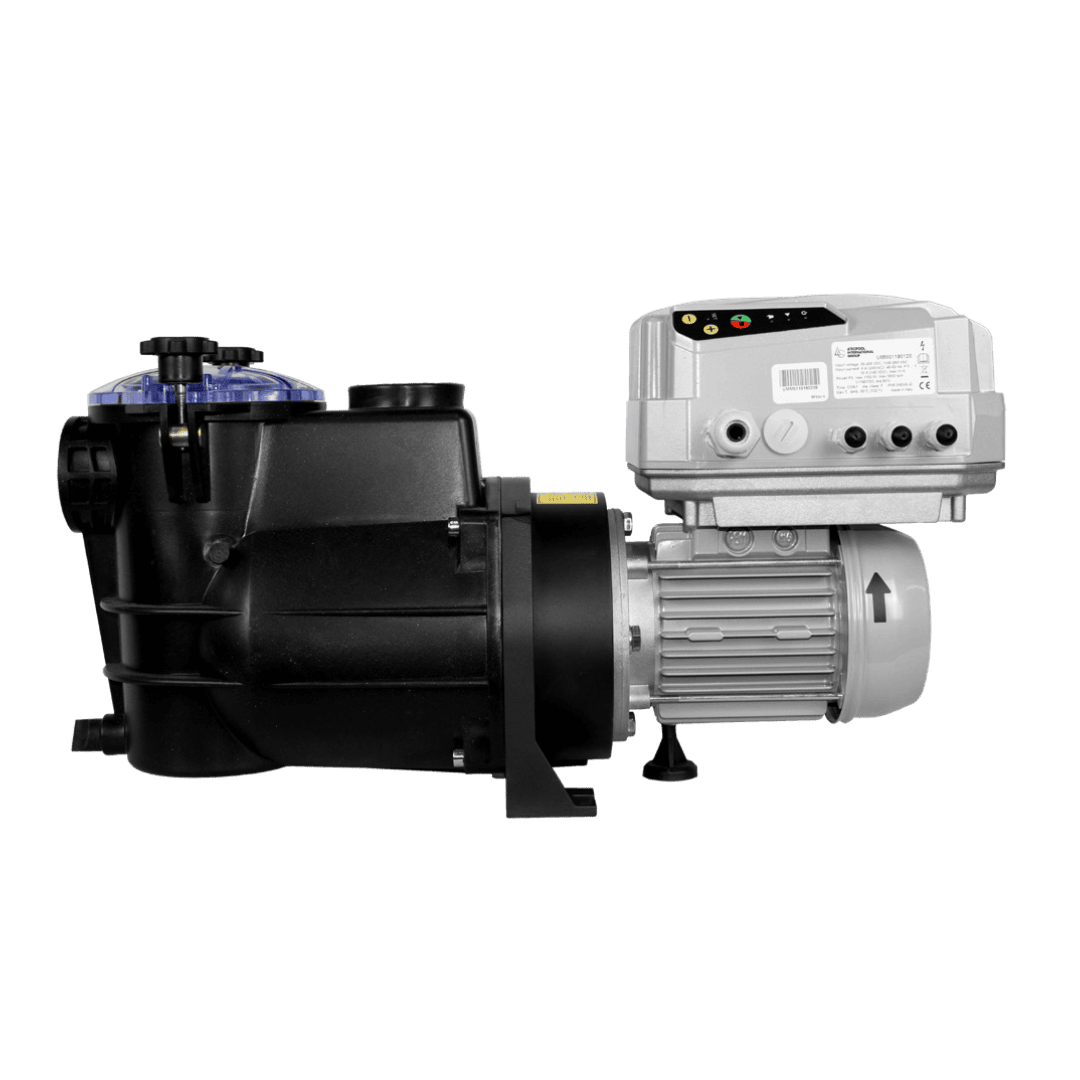

Atecpool Solar Pump Specifications
- High energy efficiency is achieved due to the photovoltaic panels
- Variable speed operation depending on solar radiation
- Electronic configuration improves the duty point
- Energy saving due to solar panel power
- Low noise operation
- IP55 for humid and dusty environments
- Good mechanical integration of the motor and the inverter
- Powered either by solar panels or standard AC/DC, with an optional module
- Integrated inverter: built in aluminium with an independent ventilation system to guarantee excellent thermal performance
- Synchronous three-phase motor: high efficiency permanent magnets
- Mobile APP and Bluetooth connection used to set and monitor different parameters
Pump materials
- Pump body: polypropylene +30% GF.
- Impeller and diffuser: noryl + 30% GF.
- Shaft: stainless steel AISI 316L.
- Mechanical seal: carbon + resin – ceramics.
- Prefilter cover: polycarbonate.
- Prefilter basket: polypropylene +5% GF.
Technical Data
| Model | Frequency | Input Current | Input Voltage | Enclosure Rating | Motor Insulation | Communication | Input | Output Settings | In–Out |
|---|---|---|---|---|---|---|---|---|---|
| Hz | A | V | IP / NEMA | Class | Protocol | Analogue Inputs | Digital Outputs | ||
| ASOLAR100 | 48–62 | 11A PF:1 | 90–400V DC 1 × 90–265V AC |
IP55 (NEMA-4) |
Class F | RS485, MODBUS RTU Protocol |
4 analogue inputs (10 or 15 VDC) |
Two digital outputs N.O. or N.C. |
1½” |
