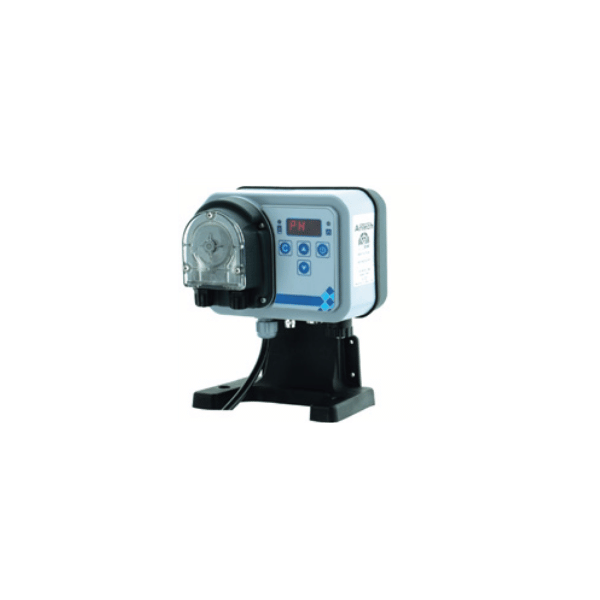

Atecpool pH Delta
The Atecpool pH Basic system allows you to measure the pH of the pool and correct it by injecting acid using a metering pump. It is composed of a control unit that measures ph and contains the control software and an integrated acid metering pump. To take into account the delay in measurement and avoid excessive dosing, the pump got alternate periods of pause and run of 100 seconds when you have to inject acid. All control and measurement functions are performed on the controller and are configured using an LCD screen, a 4-key keyboard and a simple menu system.
Specifications
Digital screen, precise dosing with micro controller technology, time adjustment, liquid level control and user password parameters
User friendly button technology with easy menu
pH measurement with standard combination electrodes
Totally digital and automatic calibration by using buffer solutions
Start-up Delay function, adjustable timer for correct reading measurements according to chemical reaction time (0-60 min)
4-20mA analog input
Suction, injection parts and liquid level sensor accessories included
Adjustable BNC input (optional liquid level or flow contact)
Easy and flexible installation and usage by the vertical mount design and alternative mounting advantage by base fixing bracket
Flow calibration can be done and monitored on the screen as ml/h
