| Code | Flow Rate | Pressure | CC/Imp. | Connection | Strokes/Min. | Dimensions | Weight | Absorption | Power Supply |
|---|---|---|---|---|---|---|---|---|---|
| 210-220 | 0.6 L/h | 7 bar | 0.1 | 4×6 | 100 | 175 × 86 × 116 mm | 1.5 kg | 14 W | 110–240 V AC |
| 210-320 | 2 L/h | 7 bar | 0.33 | 4×6 | 100 | 175 × 86 × 116 mm | 1.5 kg | 14 W | 110–240 V AC |
| 210-420 | 5 L/h | 5 bar | 0.52 | 4×6 | 160 | 175 × 86 × 116 mm | 1.5 kg | 14 W | 110–240 V AC |

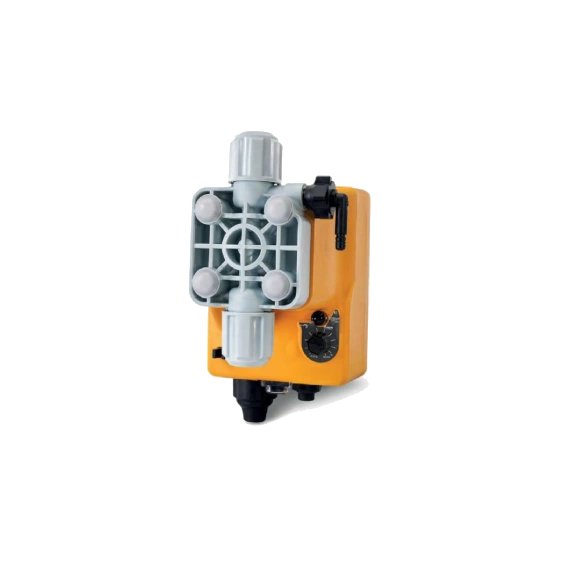

Atecpool Olympia Solenoid Dosing Pump
Manual Dosing Pumps
- PVDF pump head suitable for chemicals used in wastewater treatment and pools.
- PTFE diaphragm: unique life expectancy and compatibility with most chemicals.
- Steady dosing: Stabilized multi-power supply 100-240 V AC 50/60 Hz with reduced consumption.
- Quick connections; Manual priming valve. IP65 protection
- Adjustable flow rate by buttons on the front panel.Power-on and level alarms LED.
- Analogue with constant flow 0-20%, 0-100% double manual flow regulation
- Level probe predisposition with quick connection
- Base support as optional
- Anti-seepage system
