| Model | Power | Sauna Size | Dimensions (W × H × D) | Stones | Mounting | Side | Front | Ceiling | Floor |
|---|---|---|---|---|---|---|---|---|---|
| CUP 45 D | 4.5 kW | 3–6 m³ | 410 × 580 × 280 mm | 15 kg | Wall | 50 mm | 80 mm | 1200 mm | 120 mm |
| CUP 60 D | 6 kW | 5–9 m³ | 410 × 580 × 280 mm | 23 kg | Wall | 70 mm | 100 mm | 1250 mm | 120 mm |
| CUP 80 D | 8 kW | 8–13 m³ | 410 × 580 × 300 mm | 23 kg | Wall | 100 mm | 150 mm | 1250 mm | 120 mm |

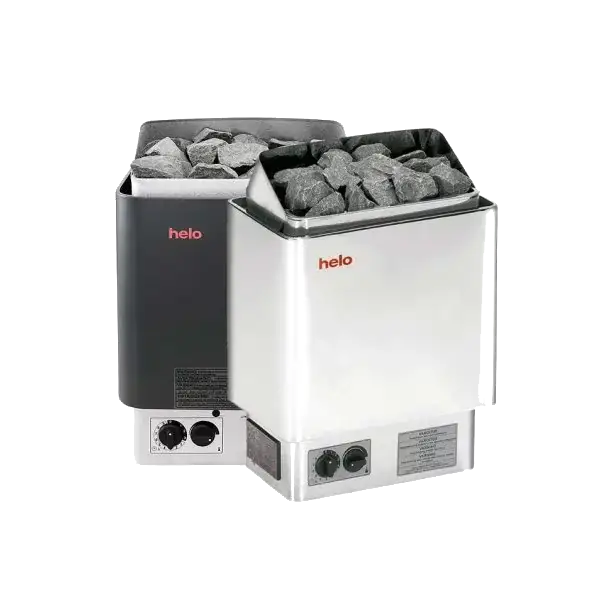

Helo Cup Sauna Heater
Reliable and safe Cup sauna heaters are an excellent choice for a traditional Finnish type sauna. These compact wall-mounted heaters are designed for domestic small and mid-size sauna rooms. They are easy to assemble and easy to use with a built-in timer and thermostat or with a separate control unit. With the timer, you can pre-select the time when you want the heater to be turned on, max. 9 hours beforehand. The running time is max 3 hours. CUP D requires a separate control unit, while the CUP STJ heater comes with a built-in thermostat and a timer of 9+3 hrs.
