Deck Jet with WaterSwitch

Deck Jet with WaterSwitch

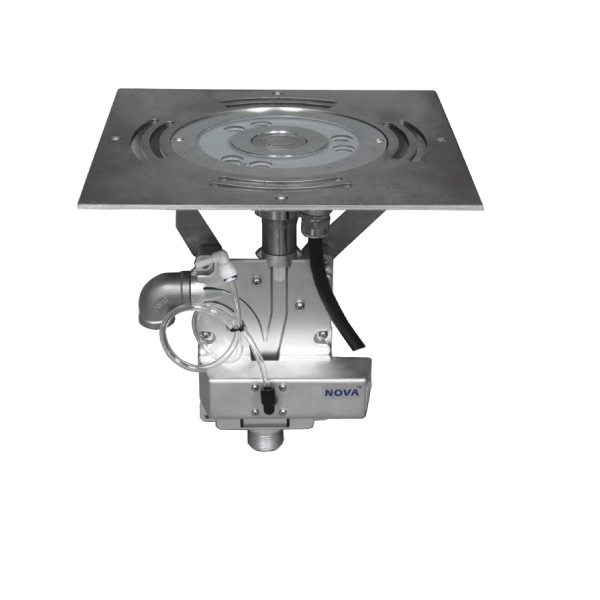

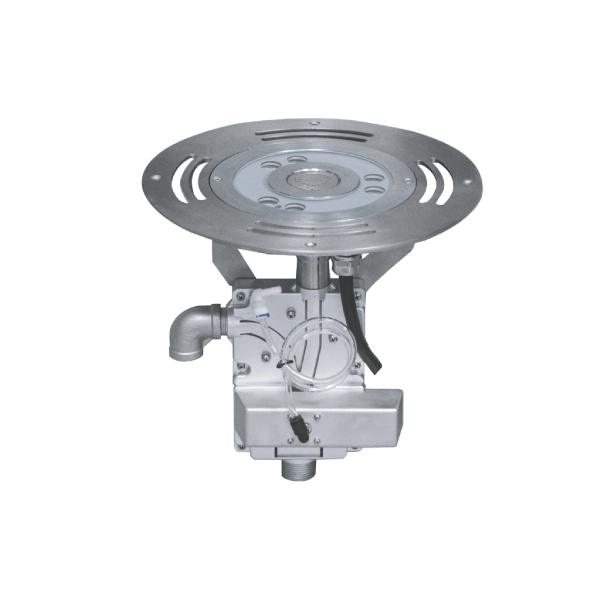

Circular / Square Deck Jets with WaterSwitch

Flush mounted Deck Jet Nozzle in two shapes, Circular and Square. Nozzle assembly with 360 deg illuminating LED includes programmable ( on-off ) Waterswitch spray effect. LED-Nozzle assembly suitable for dry deck fountain where there is no visible water body but sprayed from nozzles and drained through grate cover surrounding the nozzle assembly.

Main features

Deck Jet with WaterSwitch

Description

Atecpool Deck Jet + WaterSwitch Specifications

  • Shape: Circular or Square suspended Deck Jets with WaterSwitch
  • Deck Jet Construction : AISI 316 Stainless Steel
  • WaterSwitch Construction : ABS with AISI 316 stainless steel mount
  • Central Interchangeable Flush Nozzle : Column Nozzle/Angle Ring Nozzle
  • LED Light Type : Three Types
    Type 1: AYP36WW/CW (3000K/ 6000K)
    Type 2: AYP36RGB (RGB 3 in 1)
    Type 3: DMX182RGB (RGB 4 in 1)
  • Drain : Pre-attached to nozzle assembly.
  • Fixing : Designed for mount and anchored on paver.
  • LED light cable : 3m STW 18AWG



































[wrt_print_rt_wp_responsive_tabs tabset_id=”411″]
