Atecpool Jet stream Nozzle in Stainless steel construction, highly competitive in hydraulic performance. The Jet swim pump is activated via the pneumatic switch. Wall mounted assembly with handle semi-circular, the regulator forces the impact of the water jet into nozzle of 35mm. Installation of Atecpool Jet Stream Nozzle is hassle free with inlet outlet connections on the rear end. The center of the Jet stream housing must be 175 mm below the water surface. The stainless steel front plate is installed after the casting.
AT019S

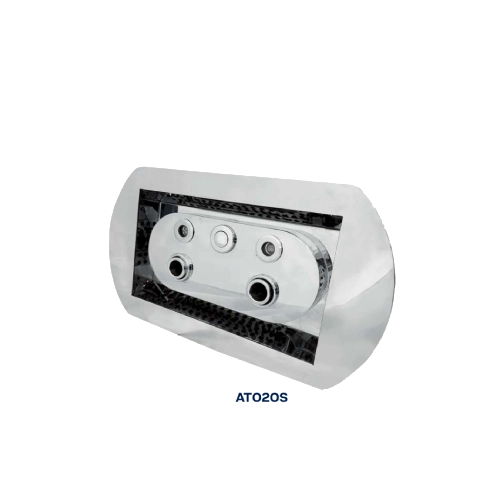

AT020S
| Code | Description | Dimensions (mm) | Pipe Connection | Flow Rate (m³/h) | Materials |
|---|---|---|---|---|---|
| AT019S | Double Jet stream nozzle 35mmx2 – Round shape | Ø313 | 2.5″ | 70 | SS AISI 316 |
| AT020S | Double Jet stream nozzle – Rectangular shape | 500 x 280 | 2.5″ | 70 | SS AISI 316 |
