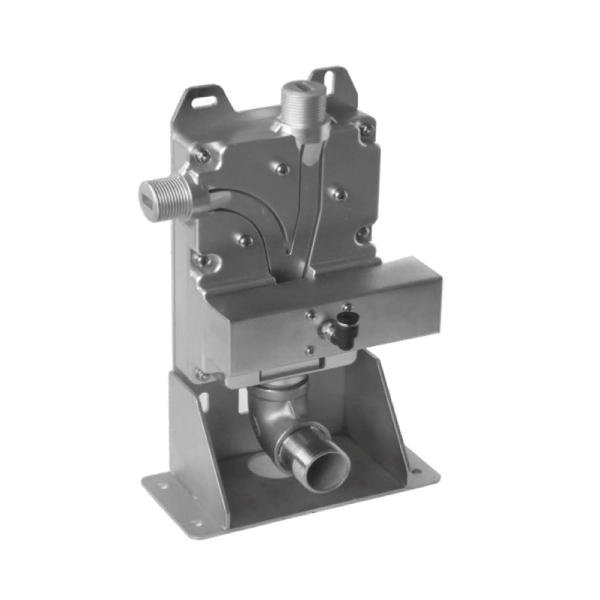

WS1000/ WS1500 WaterSwitch

WaterSwitch is a special shifter which can produce dynamic spray variation, designed and engineered for fast acting, electrically operated directional water changing assembly. WaterSwitch allows on-off programming of an attached spray nozzle. Interactive fountain displays with programmable WaterSwitch gives various harmonious water effects.

Main features

Water Switch

Description

WaterSwitch Specifications

  • Construction : ABS with AISI 316 stainless steel mount
  • WS1000 with Inlet Connection 1” and two Discharge Connections of 3/4”.
  • WS1500 with Inlet Connection 1.5” and two Discharge Connections of 1.5”.
  • 24VDC 10W Solenoid valve, actuation speed up to 1 /12 second
  • Can be mounted on ground or suspended on horizontal or vertical bracket
  • 3 meter cable SJTOW 18AWG



Characteristics                                             WS1000                                                        WS1500
Rated voltage                                                      24VDC                                                             24VDC
Power Consumption                                           10W                                                                 10W
Power Cable                                                 3m STW 18/ 3AWG                                   3m STW 18/ 3AWG
Switching Speed                                              1/12 seconds                                                   1/12 seconds
Weight                                                                   2.9kg                                                                3.8kg
Inlet connection                                                     1”                                                                     1.5”
Outlet connection (2 nos)                                   3/4”                                                                  1.5”













WaterSwitch WS1000 Assembly

WaterSwich assembly requires nozzle, pump and control systems. Assembly can also include Ring Fountain LED. Fine screening of nozzles is required and mesh size of 0.4 mm or smaller required for debris removal at nozzle.

WaterSwitch WS1500 Assembly

WaterSwich assembly requires nozzle, pump and control systems. Assembly can also include Ring Fountain LED. Fine screening of nozzles is required and mesh size of 0.4 mm or smaller required for debris removal at nozzle.
