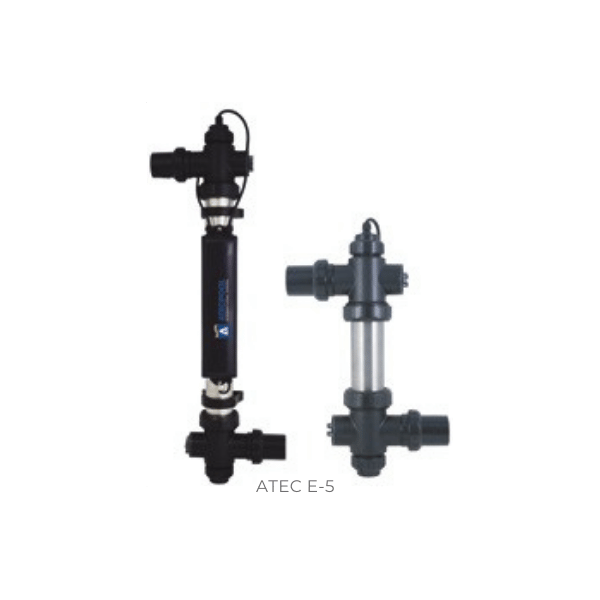

Atec E-Series UV System disinfection in a very compact design, with easily replaceable lamps that are with single base. Suitable for residential pools, fish ponds, residential drinking water treatment. The UV lamp provides a UV dose of 30 mj/cm², which is sufficient disinfection and protection against 99.9% chlorine resistant micro-organisms.
ATEC E-Series UV Sterilizers Specifications
Reduces the chlorine consumption up to 50%.
316L Stainless Steel housing with mirror polished interior that increases the UV-C radiation reflection, thereby increasing the efficiency by up to 35%.
Optional timer to control the running operation hours.
Single-base lamps and patented sealing system for an easy maintenance.
Inlet / outlet connections using unions supplied.
Lamp service life (up to 9.000 hr)
Power supply: 120 / 240V / 50 – 60Hz
| Specification | Details |
|---|---|
| Housing | 316L Stainless Steel |
| Interior | Mirror polished |
| Lamp Type | Single-base lamps |
| Lamp Service Life | Up to 9,000 hours |
| Power Supply | 120 / 240 V / 50–60 Hz |
| Connections | Inlet / outlet unions supplied |
| Optional | Timer to control operating hours |
| Code | Max Flow Rate @ 30 mJ/cm² (m³/h) | Recommended Flow Rate @ 60 mJ/cm² (m³/h) | Pressure (bar) | UV Lamp | Max Current (A) | Inlet / Outlet PVC Union |
|---|---|---|---|---|---|---|
| ATEC E-5 | 7 | 3.5 | 3 | 16 W | 0.29 | 1.5" |
| ATEC E-15 | 20 | 10 | 3 | 40 W | 0.29 | 2" |
| ATEC E-20 | 25 | 12.5 | 3 | 75 W | 0.29 | 2" |
