Automatic valve manifold sets are delivered completely assembled, including a manometer panel with testing valves and the pipe supports (pipe supports are only supplied for filters with connections larger than 90 mm).

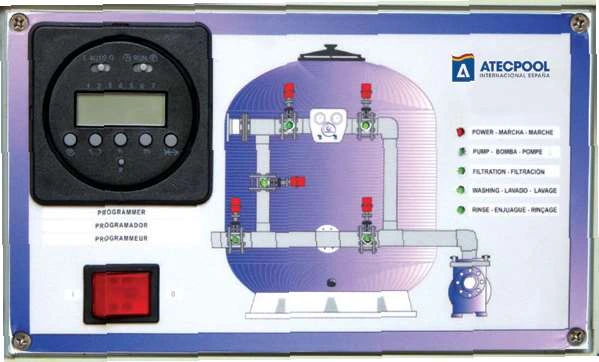

Supplied with automatic PVC butterfly valves with electric or pneumatic actuator. Control panel for valve manifold to be used with electrically or pneumatically actuated valves. Fitted within the control panel, automatic programming installation that allows the execution of automatic filtration, backwashing, rinsing and shut-down operations. Control panel supplied together with automatic valves. 230 V single phase with factory programmed automation. Each valve battery consists of 5 butterfly valves, control panel, manometer and pipes, fully assembled.
Technical Specification
| Code | Description | Connection Diameter | Connection Size |
|---|---|---|---|
| AV0683 | 5-Valve Battery E | D80 | 3″ |
| AV0684 | 5-Valve Battery E | D100 | 4″ |
| AV0685 | 5-Valve Battery E | D150 | 6″ |
| AV0686 | 5-Valve Battery E | D200 | 8″ |
Pneumatically Actuated Valve Manifold
| Code | Description | Connection Diameter | Connection Size |
|---|---|---|---|
| AV0691 | 5-Valve Battery P | D80 | 3″ |
| AV0692 | 5-Valve Battery P | D100 | 4″ |
| AV0693 | 5-Valve Battery P | D150 | 6″ |
| AV0694 | 5-Valve Battery P | D200 | 8″ |
